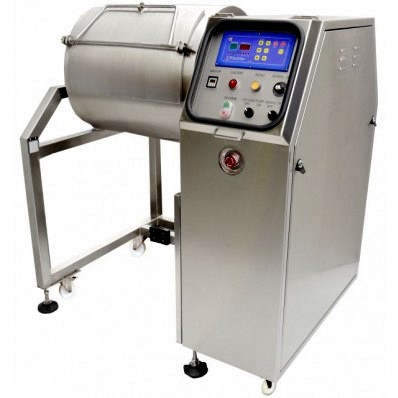

Vacuum Tumbler

IFAINDIA Machines & Equipment supplies a wide variety of tumbling and marinating machines, from simply marinating tumblers to vacuum and refrigeration tumblers, not all models are shown on our website. Tumbling machines can be used on cooked or raw products that need to be massaged, tumbled, matured, mixed, salted or marinated. The smallest one we sell has a capacity of 14kg and the biggest is over 500kg.

Description:

This Series of machine continuous style vacuum tumblers utilize a vacuum system that allows vacuum to be drawn, vented and re-drawn all while the drum is in motion
This system and our PV-03 microprocessor control panel allow this Series to provide greater pick up due to the “sponge “effect caused by this system
This type of system has been the standard of the industry in Europe for many years because of its overall advantage compared to non-continuous vacuum systems.
Another advantage to the PV-03 control system is the “set it and forget it” capability when your operation calls for multiple vacuum, vent and mixing cycles as the desired sequence can all be programmed into the PV-03 then the machine is automatic after the cycle is begun
All this makes T-Series the machines to have when you are ready to take your vacuum marinating operation to the next level.

Technical Specifications

Capacity	Kg	70 – 454
Vacuum Pump capacity	20m3/h	21
Voltage	V/Hz	400/50
Machine Weight	kg	300
Machine Size	MM	1345x940x1460
Net weight	kg	370
